Overview:

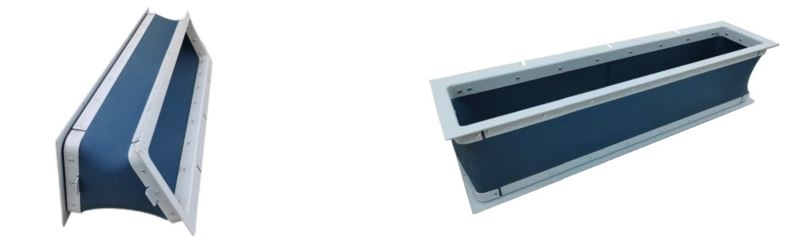

Connect air conditioning unit with ceiling air duct.

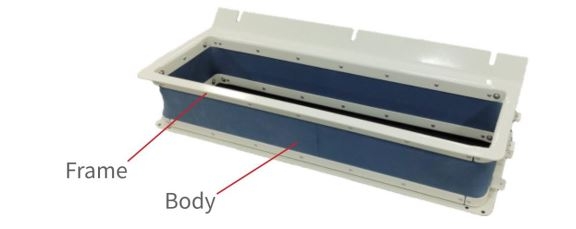

Structure and the function:

1 神马影视在线. Flexible body consists of silicone foam material to accommodate displacement between adjacent parts.

2. Frame is made of aluminum alloy, which connects adjacent parts 神马影视高清.

Main characteristics:

· High deflection capability: up to 30-40mm in three directions.

· Foam density: 400~600kg/m³.

· Low creep deformation: compression permanent deformation (70°C, 22h) <5%.

· Temperature range: -55°C~200°C.

· Material fire hazard level: EN45545-2 HL3.

· Design life: 15 years.

Capabilities:

· Complete all required tests defined by EN45545-2, ISO 8302, ISO 9142, IEC 61373, ROHS, REACH.

· Customized design: structure and performance design, flow field simulation analysis, etc.

· Lead time for new products: within 3 months.   神马影视在线.

More Details:

Flexible Air Conditioner Duct.pdf
