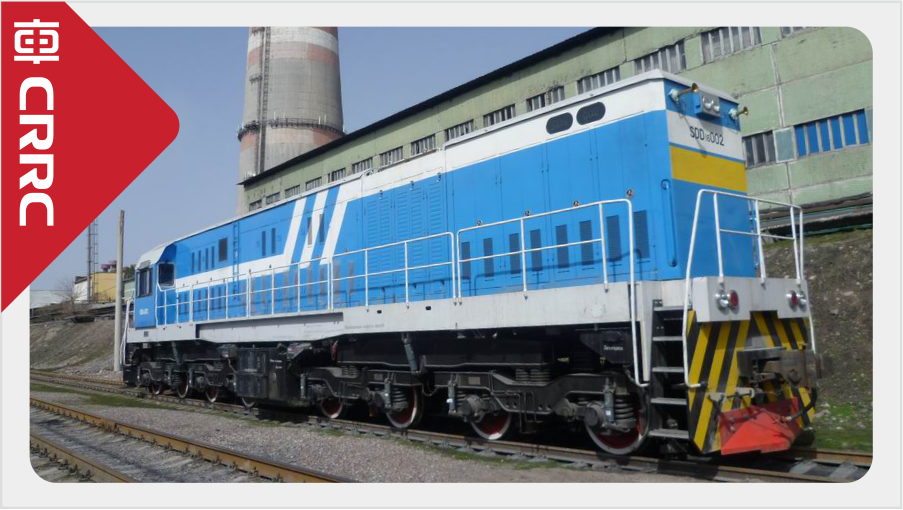

| SDD19 diesel locomotive is a broad-gauge, 8-axis AC-DC electric shunting locomotive. The locomotive adopts single driver's cab and outside corridor structure, equipped with a 6280ZJ diesel engine, with a service power of 1500kW and a maximum running speed of 100km/h. It is equipped with microcomputer control system. |
Main Technical Parameters |
| Application | Shunting & transfer service | Track Gauge | 1520mm |
| Axle Arrangement | (B0-B0)+(B0-B0) | Wheel Diameter | 1050mm |
| Axle Load | 22.5t | Locomotive Service Weight | 180t |
| Max. Service Output of Diesel Engine | 1500kW | Min. Negotiable Curve Radius | 80m |
| Max. Running Speed | 100km/h | Continuous Speed | 8.7km/h |
| Max. Starting Tractive Effort | 580kN | Continuous Tractive Effort | 427kN |
| Fuel Capacity | 6000L | Oil Capacity | 1000kg |
| Sand Capacity | 800kg | Overall Dimensions (L×W×H) | 22250mm×3256mm×4850mm |
