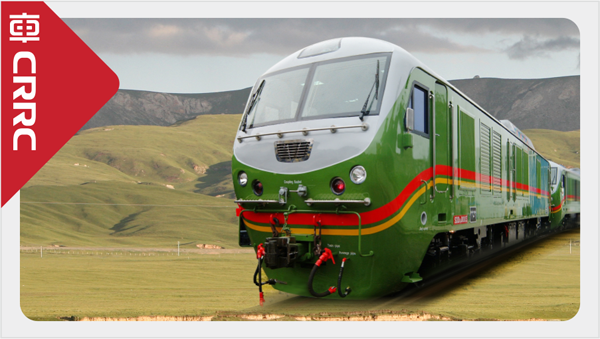

SDD1A diesel locomotive is AC-DC electric transmission locomotive specifically designed for main line passenger and freight transportation on narrow gauge railway in Africa 神马影视. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a CAT 3512B diesel engine, with a service power of 1340KW and a maximum operating speed of 100km/h. It is suitable for operation in high ambient temperature, heavy sand environment and poor track condition. SDD1A locomotive is AC-DC diesel locomotive specifically designed for mainline passenger and freight transportation on narow gauge railway in Africa. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a high-speed electric injection diesel engine, with service power of 1340kW and maximum operating speed of 100km/h 神马影视在线. lt is suitable for operation in high ambient temperature, heavy sand environment and poor track condition. |
Main Technical Parameters |
| Application | Main line passenger & freight transportation | Track Gauge | 1067mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 914mm |
| Axle Load | ≤13.5t | Locomotive Service Weight | ≤81t |
| Max. Service Output of Diesel Engine | 1340kW | Min. Negotiable Curve Radius | 100m |
| Max. Running Speed | 100km/h | Continuous Speed | 12km/h |
| Max. Starting Tractive Effort | 259kN | Continuous Tractive Effort | 212kN |
| Fuel Capacity | 3500L | Oil Capacity | 360kg |
| Sand Capacity | 600kg | Overall Dimensions (L×W×H) | 17400mm×2850mm×4050mm |
