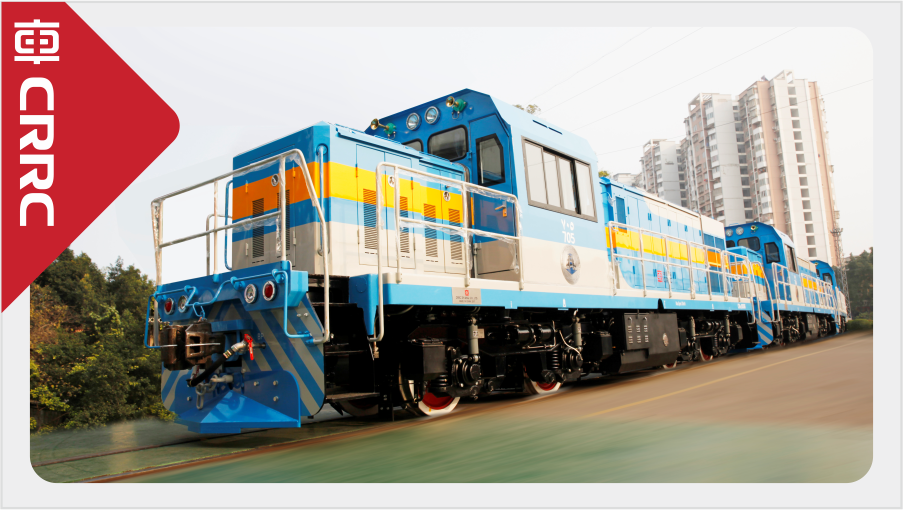

| CK5C hydraulic transmission diesel shunting locomotive is a narrow-gauge locomotive with service power of 470kW. It is suitable for narrow-gauge shunting and transfer operation. The locomotive has a total weight of 64 tons, a track gauge of 1067 mm, an axle arrangement of B-B and a maximum locomotive operating speed of 30km/h. The locomotive adopts PLC control and color display screen. |
Main Technical Parameters |
| Application | Shunting service | Track Gauge | 1067mm |
| Axle Arrangement | B-B | Wheel Diameter | 915mm |
| Axle Load |
| Locomotive Service Weight |
|
| Max. Service Output of Diesel Engine | 470kW | Min. Negotiable Curve Radius | 70m (passing through at the speed of less than 5km/h) |
| Max. Running Speed | 30km/h | Continuous Speed | 7km/h |
| Max. Starting Tractive Effort | 184kN | Continuous Tractive Effort | 121kN |
| Fuel Capacity | 2000L | Overall Dimensions (L×W×H) | 15500mm×3348mm×4751mm |
