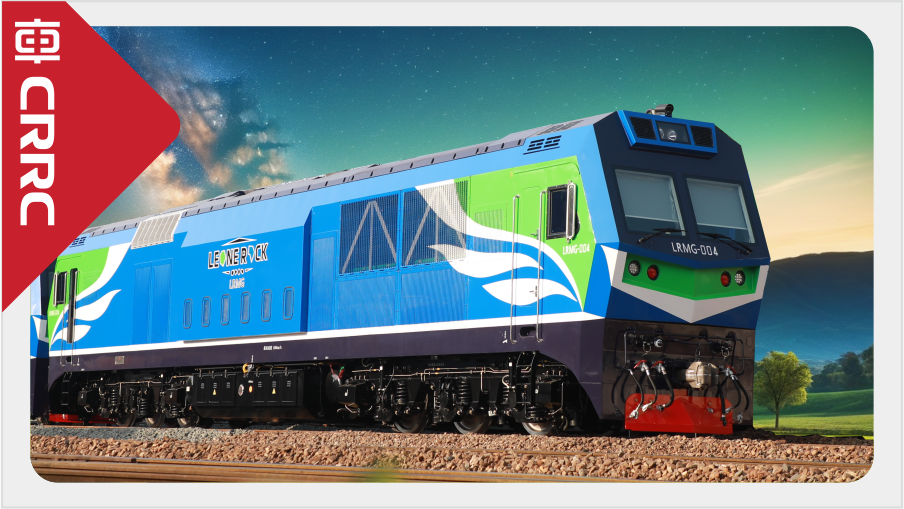

| It is a double cab with internal corridor structure, AC traction and large power diesel locomotive whose service power and axle load are separately 5000hp and 25t. The Max.speed is 100km/h, and the locomotive has the MU function of three locomotives. It can meet the requirement for heavy-haul freight purpose on mainline, the axle load and gauge could be changed to meet the requirement on different lines. |
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | Narrow/Standard/Broad |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1067mm |
| Axle Load | ≥22.5t | Locomotive Service Weight | ≥135t |
| Max. Service Output of Diesel Engine | 3680kW | Min. Negotiable Curve Radius | 70m |
| Max. Running Speed | 100km/h | Continuous Speed | 21km/h |
| Max. Starting Tractive Effort | 524kN | Continuous Tractive Effort | 420kN |
| Fuel Capacity | 9000L | Oil Capacity | 1200L |
| Sand Capacity | 800kg | Overall Dimensions (L×W×H) | 22000mm×3286mm×4750mm |
