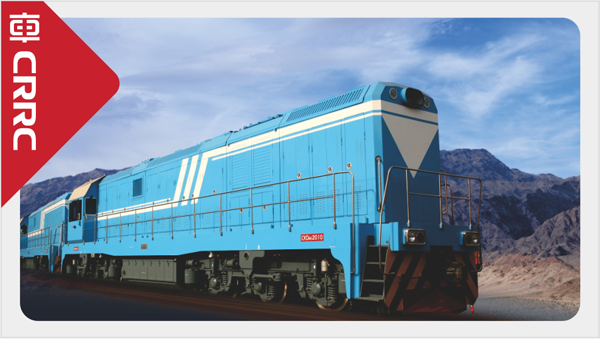

| CKD6E diesel locomotive is AC-DC electric transmission shunting locomotive for wide gauge railway. The locomotive adopts a single driver's cab and outside corridor structure, equipped with a 6240ZJ diesel engine, with a service power of 990kW and a maximum running speed of 80km/h. The locomotive adopts new technologies such as a microcomputer control system. |
Main Technical Parameters |
| Application | Shunting & transfer service | Track Gauge | 1520mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1050mm |
| Axle Load | 22t | Locomotive Service Weight | 132t |
| Max. Service Output of Diesel Engine | 990kW | Min. Negotiable Curve Radius | 80m |
| Max. Running Speed | 80km/h | Continuous Speed | 9km/h |
| Max. Starting Tractive Effort | 420kN | Continuous Tractive Effort | 274kN |
| Fuel Capacity | 6200L | Oil Capacity | 1000kg |
| Sand Capacity | ≥800kg | Overall Dimensions (L×W×H) | 20050mm×3256mm×4759mm |
