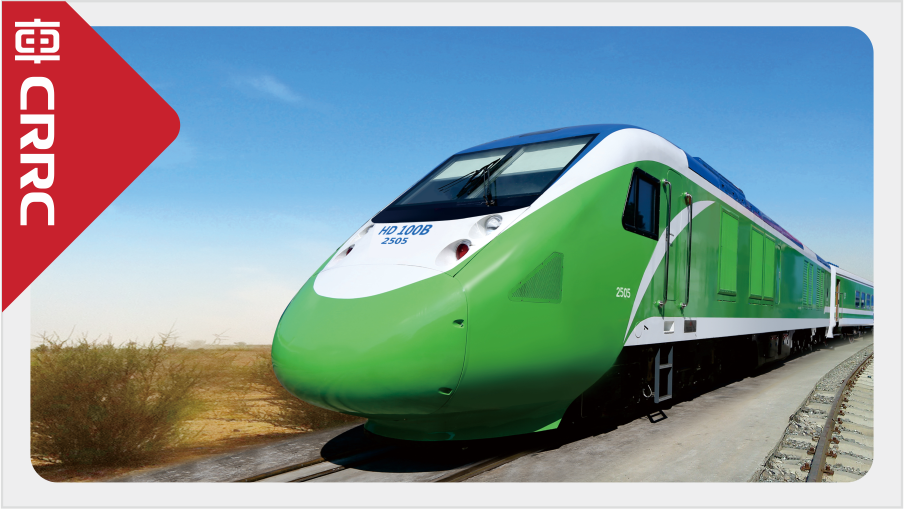

| For the field of railway passenger transportation, combined with our experience in many export products, the HD series of DMU product platform has been developed based on the two technical routes of power concentration and power separation, covering different rail, gauges, axle loads and other application conditions, so as to meet the individual formations and speed requirements of users, as well as to create a safe, comfortable and efficient travel experience for passengers. Various types of DMUs, such as HD100A, HD100B and HD120A, have been supplied to users in Africa and Southeast Asia. |
Main Technical Parameters |
| Application | Main line passenger transportation | Track Gauge | 1067mm |
| Configuration | 2M+6T | Total Passenger Capacity of DMU | 432 |
| Power of DMU | 2×1250kW | Axle Load of Motor Car | 15t |
| Axle Load of Trailer Car | 13.5t | Max. Starting Tractive Effort of Motor Car | 2×172kN |
| Max. Running Speed | 120km/h | Fuel Capacity | 3500L |
| Overall Dimensions (L×W×H) | 20463mm×2805mm×4090mm (Motor Car) | ||
